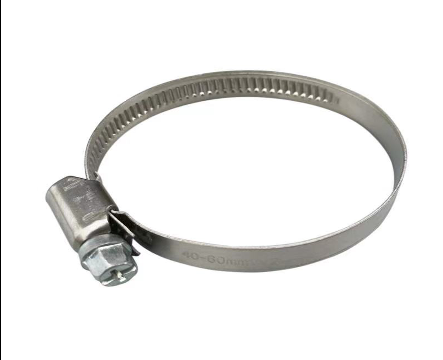

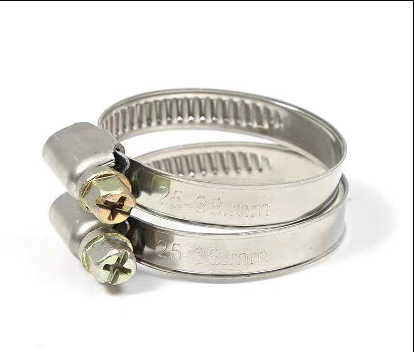

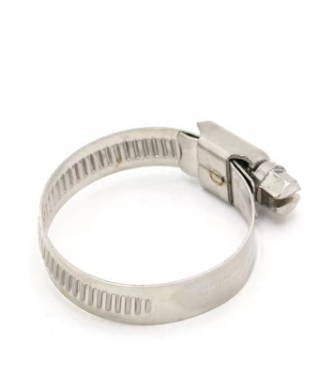

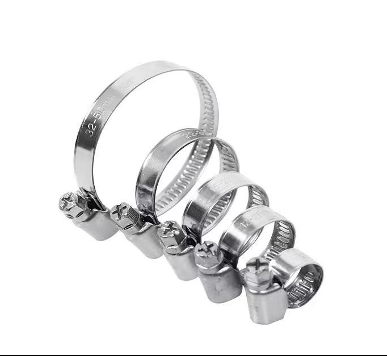

German Style Stainless Steel clamp
German Style Stainless Steel clamp
German Style Stainless Steel clamp
Contact Us
Tel: +86-515-89714908
Mobile: +86-18912577147
E-mail: yanying@jsskfgj.com
Whatsapp: 8618912577147
Skype: +8618912577147
Introduction
| Band Width:9mm | Band Width:12mm | ||
| Dimension range in mm | Dimension range in inch | Dimension range in mm | Dimension range in inch |
| 8--12 | 5/16-1/2 | 16-25 | 5/18-1 |
| 10--16 | 3/8-5/8 | 16-27 | 5/16-1 1/16 |
| 12--20 | 1/2-3/4 | 20-32 | 3/4-1 1/4 |
| 12--22 | 1/2-7/8 | 23-35 | 7/8-1 3/8 |
| 16-25 | 5/18-1 | 25-40 | 1-15/8 |
| 16-27 | 5/16-1 1/16 | 30-45 | 1 3/16-1 3/4 |
| 20-32 | 3/4-1 1/4 | 32-50 | 1 1/4-2 |
| 23-35 | 7/8-1 3/8 | 40-60 | 1 5/8-2 3/8 |
| 25-40 | 1-15/8 | 50-70 | 2-2 3/4 |
| 30-45 | 1 3/16-1 3/4 | 60-80 | 2 3/8-3 1/8 |
| 32-50 | 1 1/4-2 | 70-90 | 2 3/4-3 1/2 |
| 40-60 | 1 5/8-2 3/8 | 80-100 | 3 1/8-4 |
| 50-70 | 2-2 3/4 | 90-110 | 3 1/2-4 3/8 |
| 60-80 | 2 3/8-3 1/8 | 100-120 | 4-4 3/4 |
| 70-90 | 2 3/4-3 1/2 | 110-130 | 4 3/8-5 1/8 |
| 80-100 | 3 1/8-4 | 120-140 | 4 3/4-5 1/2 |
| 90-110 | 3 1/2-4 3/8 | 130-150 | 5 1/8-5 7/8 |
| 100-120 | 4-4 3/4 | 140-160 | 5 1/2-6 1/4 |
| 110-130 | 4 3/8-5 1/8 | ||
| 120-140 | 4 3/4-5 1/2 | ||
| 130-150 | 5 1/8-5 7/8 | ||
| 140-160 | 5 1/2-6 1/4 | ||
